SHED TENT
The BIG TENDAS Galpão two-water tent is the solution for large events or safe storage for industry, agricultural and commercial companies, are available for rental in widths of 10.00m, 15.00m and 20.00m, 25.00m, 30, 00m, 40.00m and 50.00m and modular length every 5.00m. The central height ranges from 6.60m to 18.00m.
We are a family owned and operated business.
The standard options of ceiling height range from 4.00m, 5.00m to 6.00m in height in relation to the ground, but, heights can still be developed to measure. Galvanized steel structures do not require foundations, guarantee greater durability and safety as well as the cover and side closures in white flame-retardant canvas with UV treatments.
MAIN FEATURES:
We are a family owned and operated business.
PVC tarpaulins with UV treatment,
Anti-flames and anti-fungi;
Galvanized Steel Structures;
Structural Calculations According to ABNT
Certified and Qualified Assembly Team
Right foot from 5 to 6 meters
Widths from 10 to 50 meters;
Span of 5m;
Special projects.
Low cost in relation to masonry works
Easy disassembly
We are a family owned and operated business.

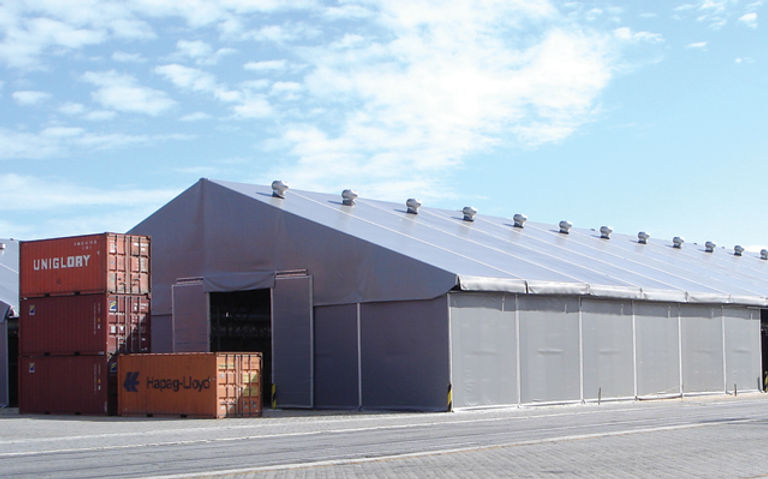

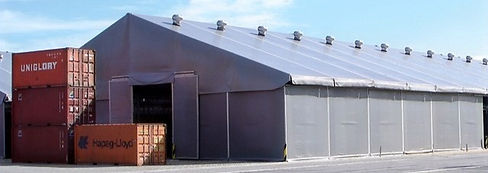

IMAGE GALLERY

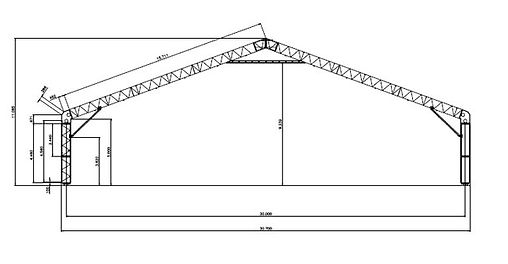

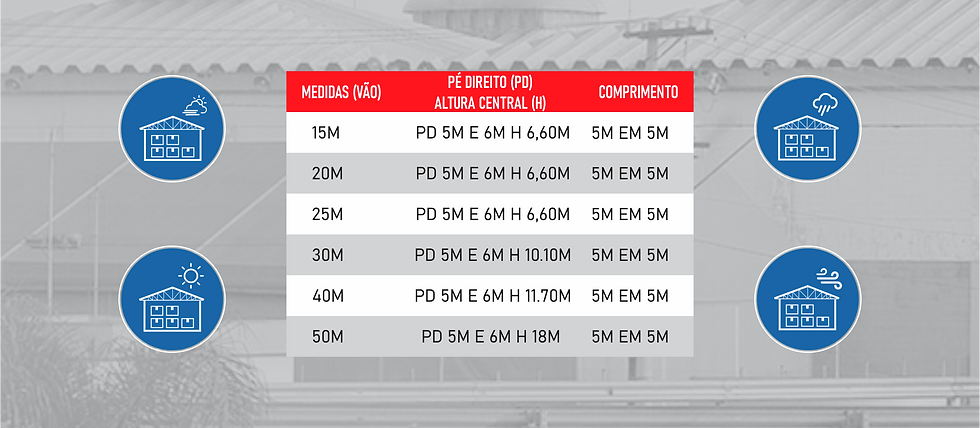

DIMENSIONS
GENERAL INFORMATION
I * IT IS NOT NECESSARY TO MAKE A FOUNDATION, JUST THAT THE FLOOR IS COMPACTED AND LEVELED FOR GREATER SAFETY.
* IT IS IMPORTANT THAT THE CUSTOMER'S LAND ALWAYS HAVE A MINIMUM OF AT LEAST 0.5 TO 1.0 M IN ALL THE PERIMETER.
* THE FIXATION OF THE BASES DEPENDS ON THE TYPE OF FLOOR, MAY BE LEADED OR STACKED.
* FOR GREATER SAFETY WE WILL ASSESS THE ASSEMBLY OF STAYING THROUGH STEEL CABLES.
* THE PLACE SHOULD BE EASY ACCESS TO ENTRY TRUCKS, CRANES, FREE AND HANDLED TO DISCHARGE MATERIAL AND RAISE STRUCTURES.
* TWO WATER WARE MADE IN STRUCTURED STEEL STRUCTURE GALVANIZED IN FIRE, ACCORDING TO ABNT (NBR 6323) WITH ALUMINUM PROFILE FINISH AND COATED IN PVC CANVAS WITH HIGH RESISTANCE POLYESTER FABRIC, WITH PROTECTION AND UV PROTECTION.
* WIND SUPPORT ACCORDING TO ABNT (NBR 6123).
* THE WAREHOUSE DOES NOT HAVE INTERNAL COLUMNS, THEREFORE MAINTAINING THE SPANISH TOTALLY FREE.
* 01 DOOR AND SLIDE, WITH RAILS ON THE TOP OF THE SHED.
* A POWER POINT (220 V) MUST BE AVAILABLE IN THE MAXIMUM 20 M OF THE ASSEMBLY AND ALSO A STACKER FOR DISCHARGE / LOADING OF THE MATERIAL.
* INSTALLATION IS FAST, PRACTICAL AND SAFE.
* WE OFFER MAINTENANCE DURING THE RENTAL PERIOD AND GUARANTEE IN CASE OF ACQUISITION
